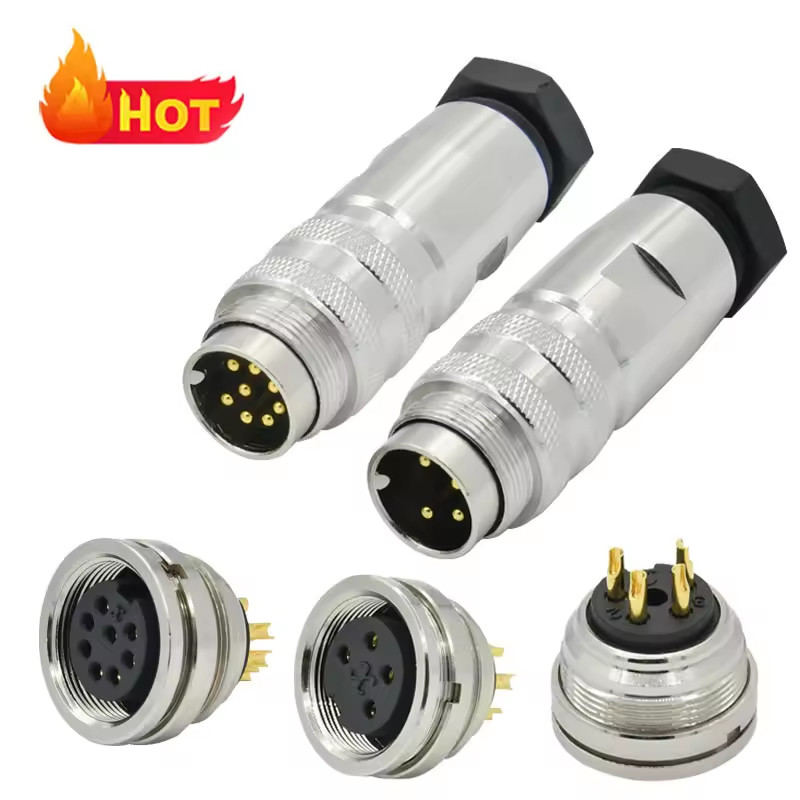

Product Description:
Whether you need a male or female connector, the M16 Circular Connector from Rigoal is the perfect solution. Designed to provide exceptional performance and durability, this connector is built to withstand harsh conditions and heavy use.
With its heavy-duty construction and waterproof design, the M16 Circular Connector is perfect for use in a wide range of applications, including industrial machinery, automation equipment, and more. Whether you need a connector for indoor or outdoor use, this product is sure to meet your needs.
In summary, the M16 Circular Connector from Rigoal is a reliable and high-quality connector that is perfect for heavy-duty applications. With its exceptional performance and durability, this circular waterproof connector is sure to provide years of reliable service in even the most demanding environments.
Features:
- Product Name: M16 Circular Connector
- Gender: Female/Male
- Coding: A
- Outlet: Suitable OD 4-8mm Cable
- Connector Locking System: Solder
- Rated Current: 5A/6A/7A
This M16 Circular Connector is a heavy duty rectangular connector that belongs to the category of circular plastic connectors. It is also known as a 64 Pin Centronic Connector.
Technical Parameters:
| Operating Temperature | -20℃~80 ℃ |
| Pins | 2 3 4 5 6 7 8 12 14 19 24 Pin |
| Rated Current | 5A/6A/7A |
| Mechanical Operation | >500 Mating Cycles |
| Rated Voltage | 125/250V |
| Connector Series | M16 |
| Contact material | Brass with gold plated |
| Type | ADAPTER |
| Coupling nut | Brass with nickel plated screw |
| Place Of Origin | Guangdong, China |
This is a table of technical parameters for the M16 Circular Connector. The connector series is a type of Circular Push Pull Connector and Circular MIL Spec Connector. It is a heavy duty rectangular connector with brass contact material that is gold plated. The coupling nut is made of brass with a nickel plated screw. The connector has a rated voltage of 125/250V and a rated current of 5A/6A/7A. It has a mechanical operation of >500 mating cycles and can operate in temperatures ranging from -20℃ to 80℃. The connector is an ADAPTER type and is made in Guangdong, China.
Applications:
This connector is perfect for a variety of product application occasions and scenarios. It is commonly used in circular electrical connectors for industrial automation, robotics, and medical devices. This product is also ideal for applications where space is limited, and the rugged design ensures its durability in harsh environments. The M16 Assembly Shielded Connector is suitable for use in a range of industries such as automotive, aerospace, defense, and marine.
The Rigoal M16 Assembly Shielded Connector is available in different models with varying pin numbers, including 2, 3, 4, 5, 6, 7, 8, 12, 14, 19, and 24 pins. It is designed to accommodate cables with suitable OD of 4-8mm. The contact plating of this connector is made of Au(gold plating), which ensures its high conductivity and resistance to corrosion. This connector is rated at 125/250V and is certified with ISO9001, CE, and RoHS standards.
One of the most common applications for this connector is in the 50 Pin Centronics Connector, which is used in computer peripherals. This connector provides a reliable and secure connection for printers, scanners, and other computer peripherals. It is also used in data communication and telecommunication equipment, audio-visual equipment, and lighting systems. Whether you need to connect cables in a harsh environment or require a reliable connector for your industrial automation or medical device, the M16 Assembly Shielded Connector is an excellent choice.
Support and Services:
The M16 Circular Connector product technical support and services include:
- Connectivity solutions and technical guidance for product selection and installation
- Expert advice and support for troubleshooting and maintenance
- Custom design and development services to meet specific application requirements
- Training and educational resources for product use and application
- On-site field service and repair options
Packing and Shipping:
Product Packaging:
The M16 Circular Connector product will be carefully packaged to ensure safe delivery to our customers. The product will be placed in a sturdy cardboard box with appropriate cushioning material to prevent any damage during transportation.
Shipping:
Our company uses reliable shipping carriers to ensure timely and secure delivery of our products. The M16 Circular Connector product will be shipped via standard ground shipping unless expedited shipping is requested. Customers will receive a tracking number to monitor the status of their shipment.
FAQ:
Q: What is the brand name of the circular connector?
A: The brand name of the circular connector is Rigoal.
Q: What is the model number of the circular connector?
A: The model number of the circular connector is m16 assembly shielded connector.
Q: What certifications does the circular connector have?
A: The circular connector is CE, TUV, and Rohs certified.
Q: What is the minimum order quantity for the circular connector?
A: The minimum order quantity for the circular connector is 100pcs.
Q: What is the supply ability of the circular connector?
A: The supply ability of the circular connector is 100,000pcs per month.
Q: What is the payment method for the circular connector?
A: The payment methods for the circular connector are L/C and T/T.
Q: What is the delivery time for the circular connector?
A: The delivery time for the circular connector is 10-15 days.
Q: What are the packaging details for the circular connector?
A: The packaging details for the circular connector are PE bag and Cartons.
Q: Is the price of the circular connector negotiable?
A: Yes, the price of the circular connector is negotiable.
