M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product

Shenzhen Rigoal Connector Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product

Brand Name : Rigoal connector(RG)

Model Number : M12 8pin waterproof connector

Certification : CE FCC ROHS

Place of Origin : Guangdong, China

MOQ : 5000

Price : USD/3.52-5.52/Piece

Payment Terms : D/A, D/P, T/T

Supply Ability : 50000Pieces

Delivery Time : 15-45WORK DAY

Packaging Details : 28CM+38CM+48CM/CARTON

Product name : 8-pin waterproof molded plug with cable M12 connector

Overmold material : Transparent TPU

Coupling material : Brass with nickel plated

Degree of protect : IP67/IP68

Number of pole : 8 pins

Operate temperature : -25℃~+85℃

Termination : screw

Contact Now

12 可添加模块
Specification


Place of Origin

China



Guangdong

Brand

Rigoal

Application

Audio & Video/Industrial/Automatic/Sensor/Power etc

Gender

Male and female

Pin

4 pin 8 pin

Code

A D X code

Type

Assembly/Panel mount/Molded

Rated current

2A for A X code 8 pin,4A for D code 4 pin

Rated voltage

30V for A X code 8 pin,250V for D code 4 pin

Operating Temperature

-25°C~85°C

Degree of protection

IP67/IP68

Connector locking system

Screw/Solder/PCB/Wire

Mechanical operation

>500 mating cycles

Contact resistance

≤10mΩ

Material of connector

CuZn

Contact plating

Au(gold plating)

Cable materials

Gate 5e/Gate 6e/Custom request

Custom

Yes







Product introduction

Waterproof RJ45 connectors are available in IP66, 67 and 68 ratings for use in almost any environment.
In the design phase, waterproof electrical connectors undergo significant R&D and quality control testing including flammability,salt water, UV, vibration & drop testing, torque and mechanical bending forces.

The result is durable, long life waterproof power connectors of comparable than some of the worlds biggest names in harsh environment connectors products are compatible with the existing marketplace
range in stock include multipin circular DIN, D-Sub and RJ45, USD, M series in both line and chassis types

Most chassis connectors have a matching screw or locking cap to ensure moisture and dust does not damage equipment when leads are not connected.


M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product


M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product


M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product


M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product


M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product

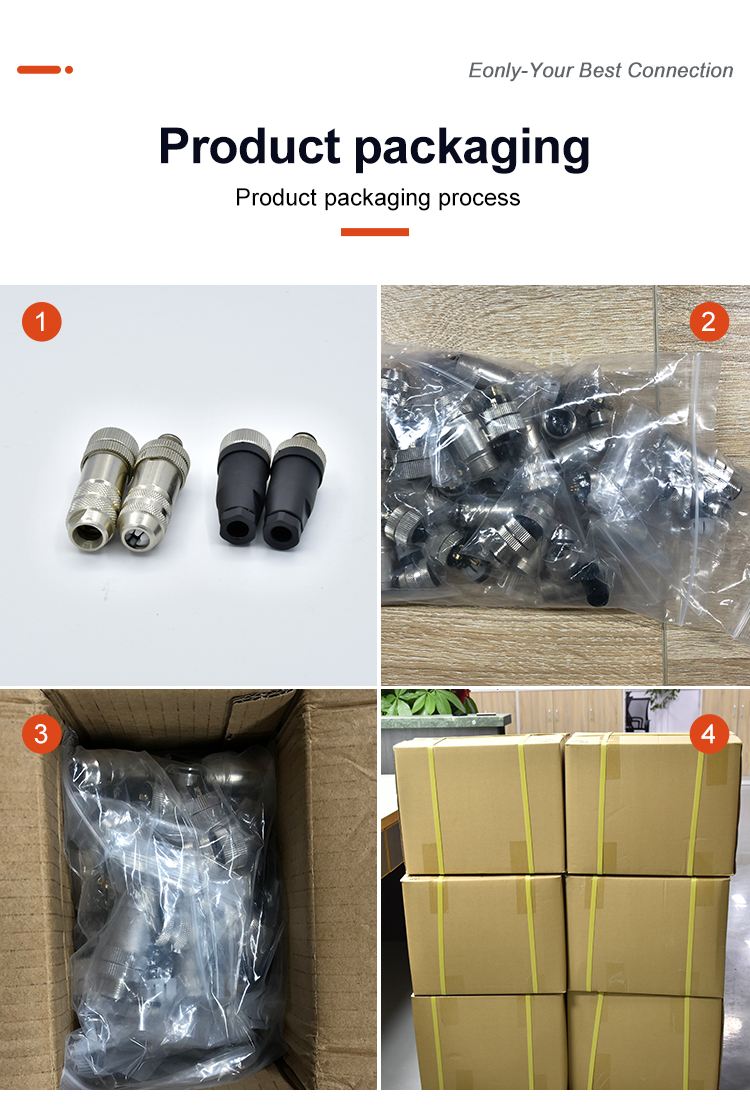

Packing


M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product

M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product

M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product

1.Each piece in one PE bag, then put in a small carton 2.OEM package is avaiable 3.According to customer requirement

Delivery


M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product

We can according to customer request choose different transport way,which more converence ,which we will choose! Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping ,training shipping etc.

Company Profile

00:00

02:42



M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product


M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product


M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product


M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product

Customer feedback


M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product

Certifications


M12 Connector with 8-Pin Waterproof Molded Plug Cable Type Product

FAQ
