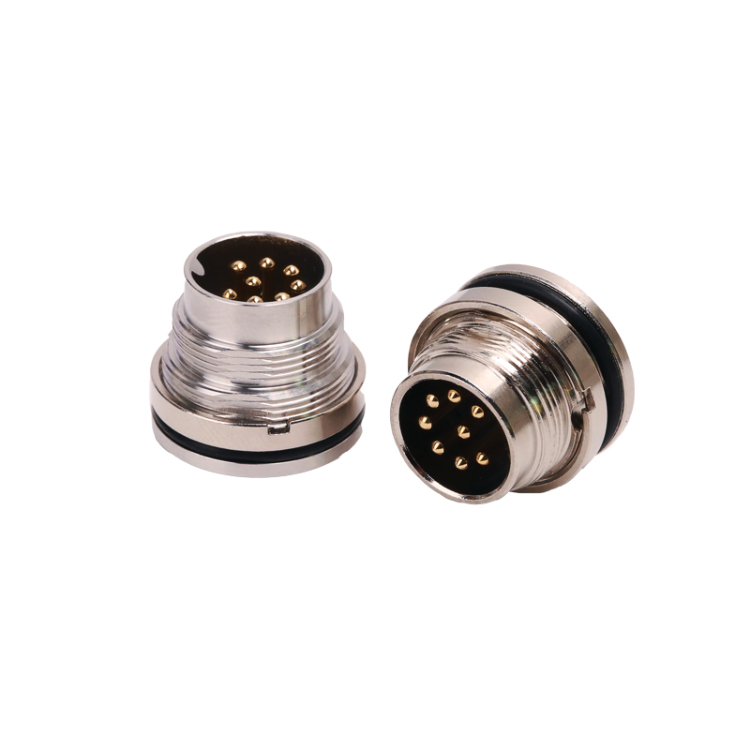

M16 flange metal waterproof connector
Product Fetures
1. Extremely strong resistant to acid,alkali,chemical cleaning agent /reagent properties;
2. Resistant to welding spark,continually twist ;
3. Resistant to oil,coolant ,lubricant and emulsion;
4. Pin configurations:3,4,5,7,8,12,14,19,24 properties ;
5. Shield and un-shield Version Available with metal or plastic housing;
6. Meet IP67/IP68 waterproof requirements;
7. Temperature Range:-25℃ ~ +85℃;
| Stardard | IEC 61076-2-106 |
| Rated current | 5a |
| Rated voltage | 500v |
| Couplingg nut | Brass with nikel palsted screw |
| Orientation | straight |
| IP rating | IP67 |
| Connector contacts | Brass with gold plated |
| Ambient temperature | -25°C ~ + 85°C |
Aisg Cable assembly
With a rugged metal housing and environmental protection rating of IP67 when mated, this robust DIN connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.
High quality AISG equivalent as Binder eries 423, 723 and 425 family of connectors are rugged, high-performance circular connectors with excellent EMI shielding and IP67. Ideal choice for severe industrial and commercial applications. Panel-mounted receptacle are available in many styles and mounting methods.
Rugged metal shells
Straight or right-angle cable connector
Right-angle cable connectors adjustable in 4 radial positions
Excellent 360° EMI shielding and IP67
Internal strain relief
2 to 24 contacts,gold(Au)- or silver(Ag)-plated
