Female 90 Degrees Molded M5 Cable Connector A Code 250VAC

Brand Name : RIGOAL

Model Number : m5 molded cable

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 10

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~ 14day

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Type : Adapter

Application : Automotive

Gender : Female

Rated voltage : 250VAC/DC

Connector type : screw

Connector overmold : ≤5mΩ

Voltage rating : 250V

Contact Now

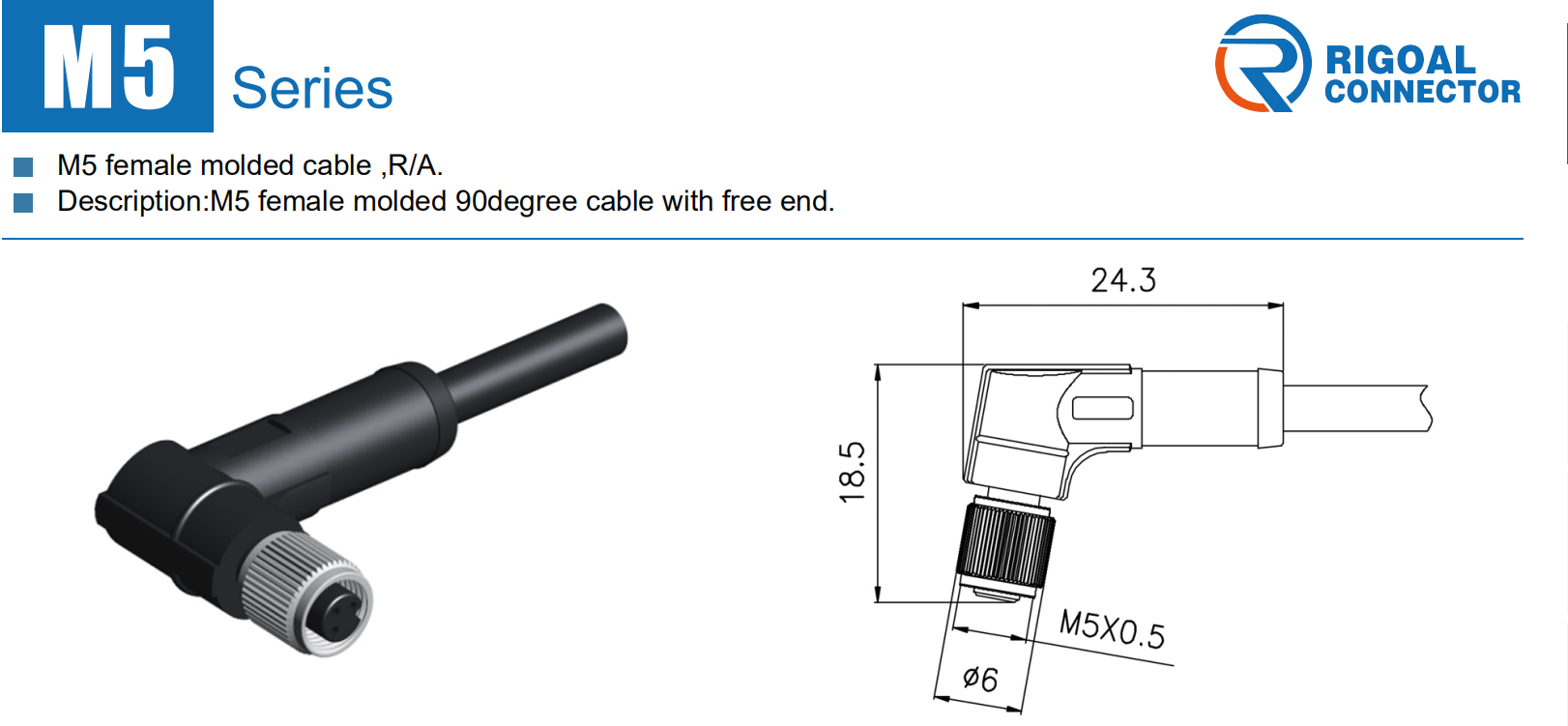

waterproof A code m5 90 degrees molded cable connector

Female 90 Degrees Molded M5 Cable Connector A Code 250VACFemale 90 Degrees Molded M5 Cable Connector A Code 250VAC



Description
Degree of protection IP67
3 4 poles are available
Anti-vibration locking screw design
RoHS & REACH Compliance
Cable length customized, PUR and PVC cable options

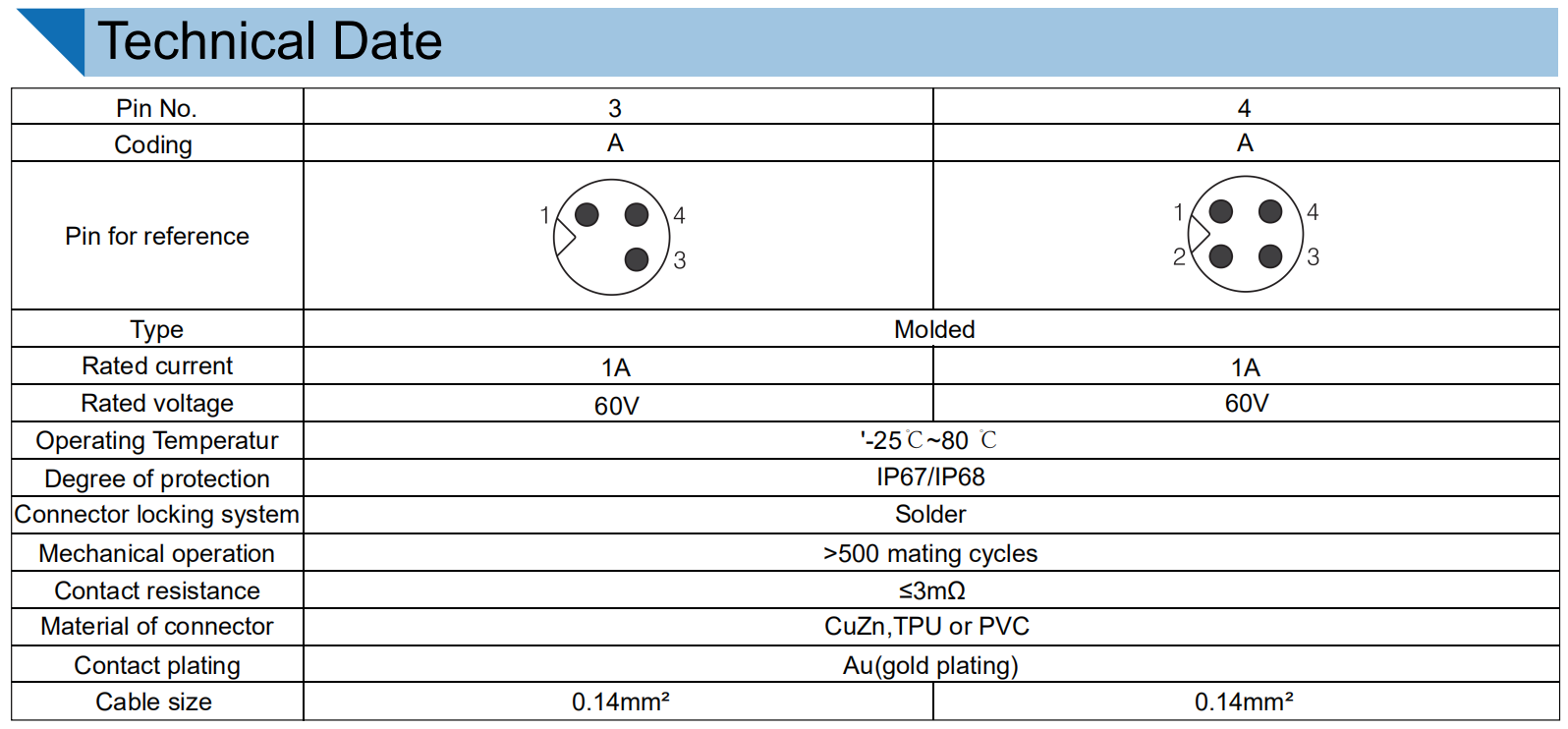

Electrical Data
Rated voltage:60V
Insulation resistance:≥100MΩ
Rated current::4A
Contact resistance:≤5mΩ
Ambient temperature:-20°C~+80°C




Connector Specification
Polarity:3pins, 4pins.
Overmold:Transparent TPU
Contacts:Brass with gold plated
Insert:TPU+GF
Coupling nut/screw:Brass with nickel plated


Degree of protection:IP67 in locked condition

Technical Characteristics:



Temperature Range:

Solder,screw:-40℃/ +80℃

Screw damp, biatec:-25℃/+80℃

Moulded -25℃/+85℃
Mechnical operation:



>100 mating cycles
Rated voltage: 60V(30V)
Impulse voltage: 2500V
Pollution degree: 3
Rated current: 4A
Contact resistance: ≤8mΩ
Insulation resistance: ≥500MΩ
Protection degree: IP67/IP68
Standard: IEC61076-2-1035
Material:
Contact plating Au(Gold)
Material of housing PBT/PA/CuZn(brass)
Cable material

PVC/PUR (cable length customized)

Solder 0.25mm(AWG24)
Wire gauge

Solder 0.25mm(AWG24)

Screw 0.14mm-0.5mm(AWG26-20)

Biatec 0.14mm-0.38mm(AWG26-22)
LED/Shielding With or without




Product Tags:

Molded M5 Cable Connector



90 Degrees M5 Cable Connector



250VAC M5 Waterproof Connector
