M8 Waterproof Connector 3 4 5 6 8Pins Panel Connector With Tail Sensor Application
Production data

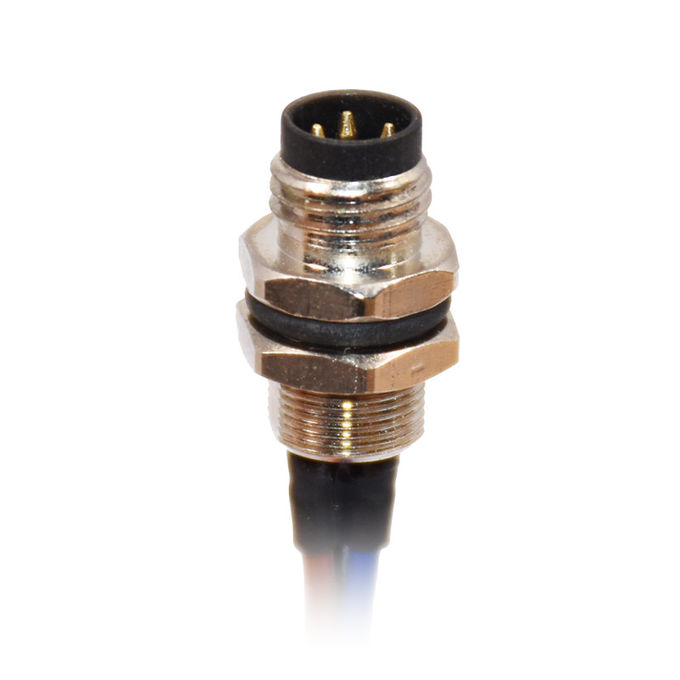

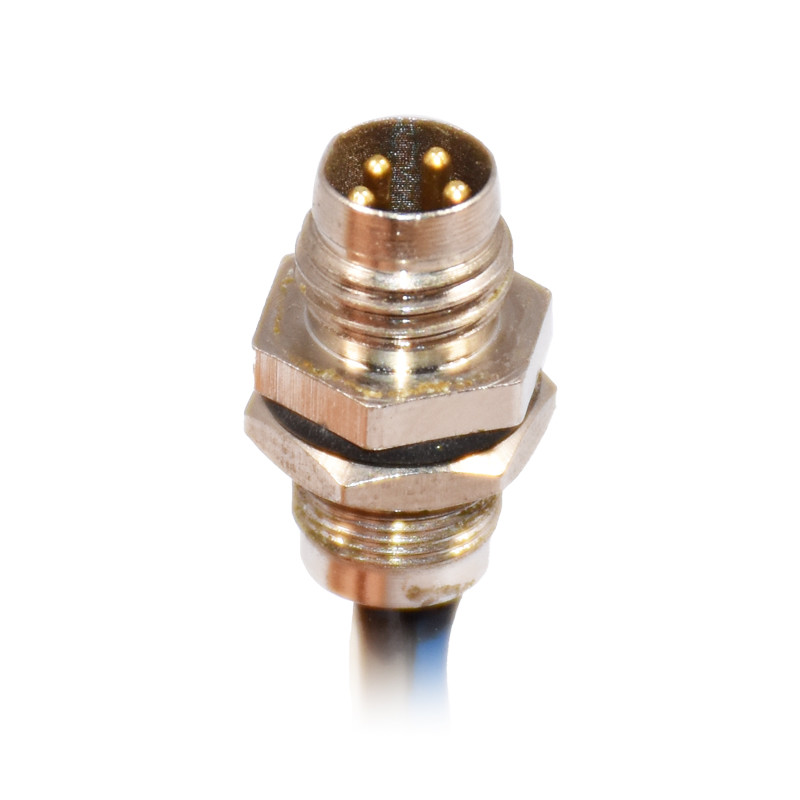

M8 male panel mount connector features a 4 pin insert with soldered contacts.The housing is nickel plated brass.
These types of connectors are known by their M8 size mating thread, and are ideal for smaller applications involving sensors and actuators.
This type of waterproof connector is sealed to IP67, IP68, IP69K providing excellent protection against dust and water.
Compliant with the RoHS Directive.
Customized orders are welcome.
Waterproof M8 panel mount connector
1. M8 panel mount connector
2. Connector locking system is bolted
3. Termination is solder
4. Wire gauge(mm) is 0.25mm²
5. Wire gage(AWG) 24
6. Cable outlet can be 3,5 - 5,0 mm
7. Temperature will from -40° to +85°
8. Contacts 3.4.5.6.8pins avaliable
| Material Data |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| Contact body material | PA |
| Housing material | PA |
Electrical values
Rated current (40 °C) : 4 A
Rated voltage :60V
Rated impulse voltage :1500 V
Pollution degree :3
Overvoltage category :III
Insulating material group :III
Volume resistivity :≤ 3 mΩ
EMC compliance :not shielded
Degree of protection :IP67
Mechanical operation :> 100 Mating cycles
| Number of Contacts | 3 | 4 | 5 | 6 | 8 |
| Rated voltage | 30V | 60V |
| Contact resistance | <5mΩ |
| Insulation resistance | <100mΩ |
| Pollution degree | 3 |
| Temperature range | 25 °C to 85° C |
| Degree of protection | IP 67 when mated |
| Mating times | 100 cycles |
| Wire gauge | 24AWG | 26AWG |
| Cable jacket | PVC or PUR |
| Material of housing | Brass Nickel Plated |
| Material of insert | PA+GF UL9V-0 |
| Material of contact | Brass phosohor bronze gold plated
|
Product photos
M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.
• LED lighting , white light , color light etc
• Low current equipement
• Connector be used in narrow environment
• Communication equipement
• Lighting harness
